Perfect Digital SRA3 Label Range

Stocked as Standard in Machine Coated Gloss 80gsm Permanent Adhesive 100 Sheets per box

Suitable for Litho, Laser & Copier Toner Based Systems and HP Indigo

Circles

Product	Label Size (mm)	Sheet-Size	Labels per Sheet	Labels per Box

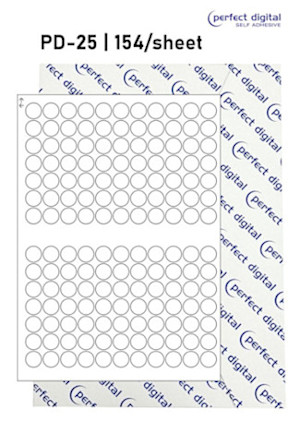

PD-25	25 dia	SRA3	154	15400

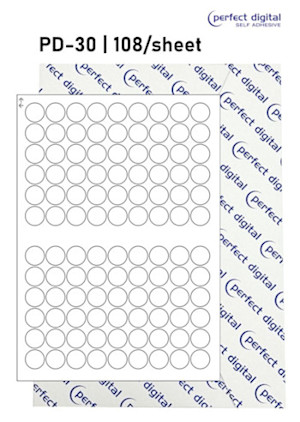

PD-30	30 dia	SRA3	108	10800

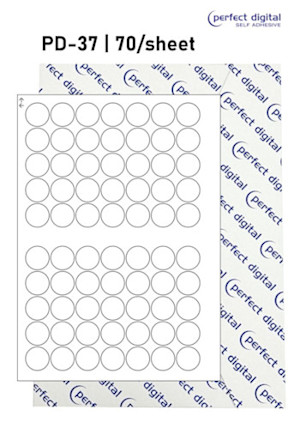

PD-37	37 dia	SRA3	70	7000
PD-45	45 dia	SRA3	48	4800

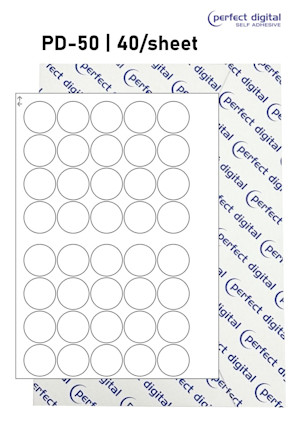

PD-50	50 dia	SRA3	40	4000
PD-64	64 dia	SRA3	24	2400

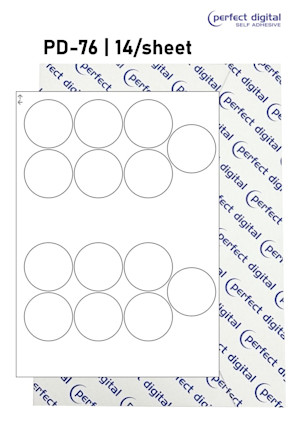

PD-76	76 dia	SRA3	14	1400

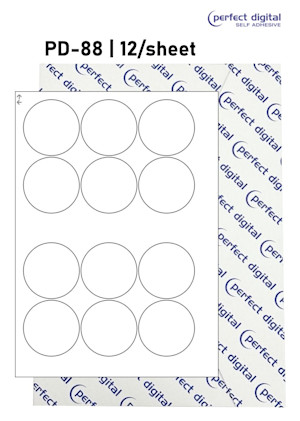

PD-88	88 dia	SRA3	12	1200

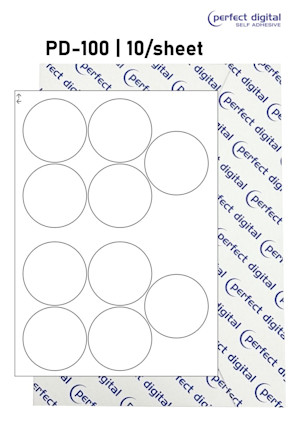

PD-100	100 dia	SRA3	10	1000
PD-110	110 dia	SRA3	8	800
PD-140	140 dia	SRA3	6	600

Squares

Product	Label Size (mm)	Sheet-Size	Labels per Sheet	Labels per Box

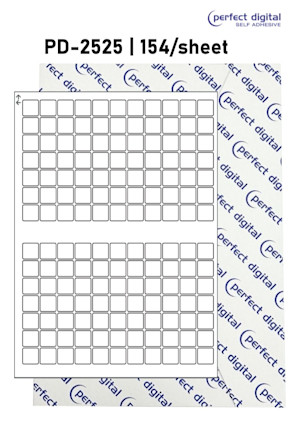

PD-2525	25x25	SRA3	154	15400

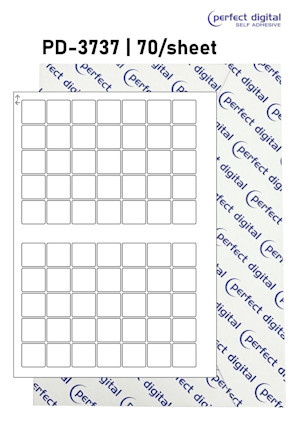

PD-3737	37x37	SRA3	70	7000

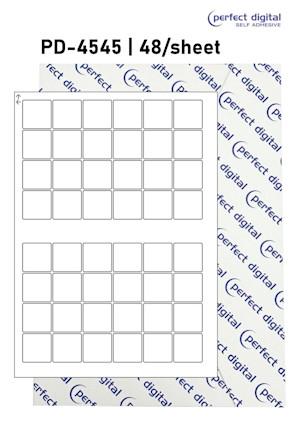

PD-4545	45x45	SRA3	48	4800
PD-50x50	50x50	SRA3	40	4000

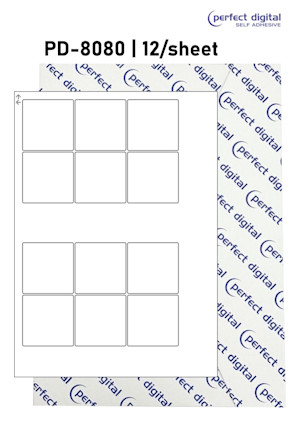

PD-8080	80x80	SRA3	12	1200

Rectangles

Product	Label Size (mm)	Sheet-Size	Labels per Sheet	Labels per Box

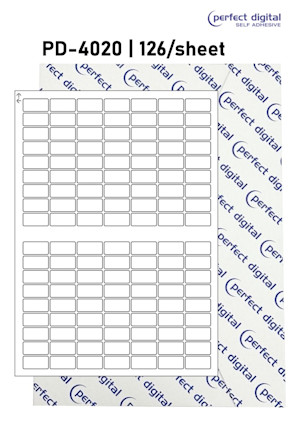

PD-4020	20x40	SRA3	126	12600

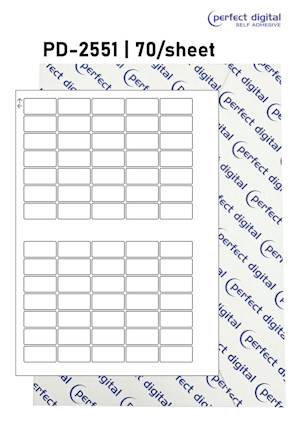

PD-2551	25x51	SRA3	70	7000

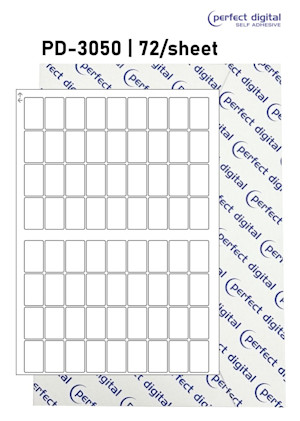

PD-3050	30x50	SRA3	72	7200
PD-3362	33x62	SRA3	48	4800

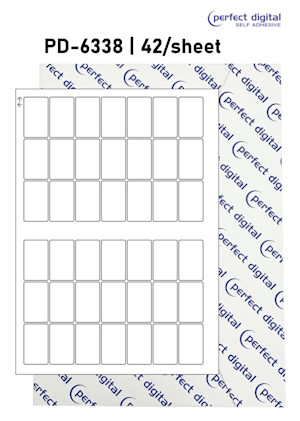

PD-6338	38.1x63.5	SRA3	42	4200

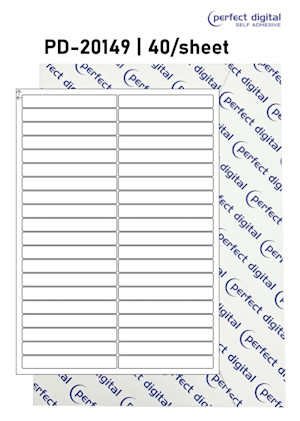

PD-20149	20x149	SRA3	40	4000

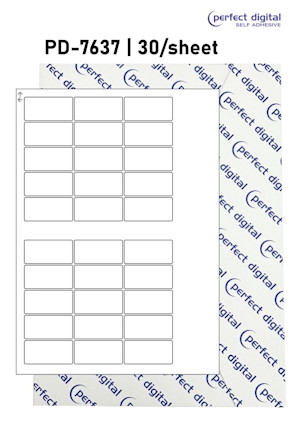

PD-7637	37x76	SRA3	30	3000

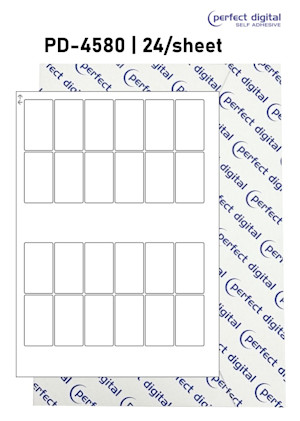

PD-4580	45x80	SRA3	24	2400
PD-9645	45x96	SRA3	24	2400
PD-7650	50x76	SRA3	24	2400
PD-5196	51x96	SRA3	20	2000
PD-9668	68x96	SRA3	18	1800

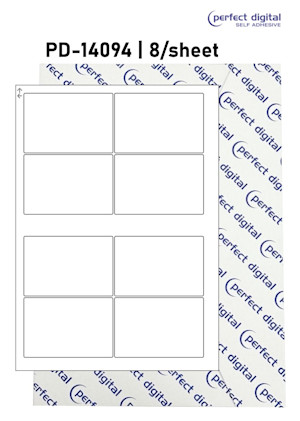

PD-14094	140x94	SRA3	8	800

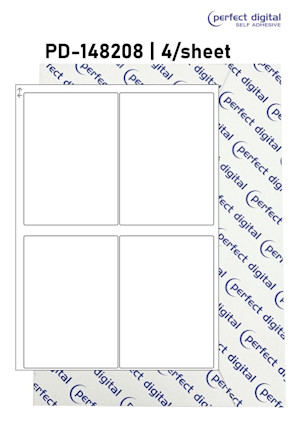

PD-148208	148x208	SRA3	4	400

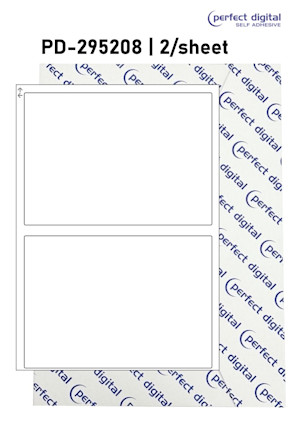

PD-295208	208x295	SRA3	2	200

The label layout is standard on most label sizes giving a consistent 13.25mm margin on the leading edges (both grip and lay) and with a constant 2.5mm gap between the labels. The label format is repeated twice on the sheet so that two A4 sheets can be produced from an SRA3 sheet.

More Labels per Sheet: The label layouts are designed to use the available area as efficiently as possible which means we get as many labels on a sheet as we can. More labels per sheet help to reduce production cost and wastage and it’s environmentally sensible.

Other sizes, materials & pack sizes available on request

Please ensure that all material is thoroughly tested to confirm that it satisfies the requirements of the end user and that it is also compatible with the printing and conversion process.
